Platform steel grating

Product No.：Platform steel grating
Online Inquiry

Platform steel grating is also called "hot-dip galvanized steel grating platform". It is a widely used steel grating product. This kind of steel grating is widely used in various industrial fields and has strong resistance to surface impact. In particular, the steel grating with a crossbar spacing of 50mm has a strong ability to resist lateral impact.

Application:

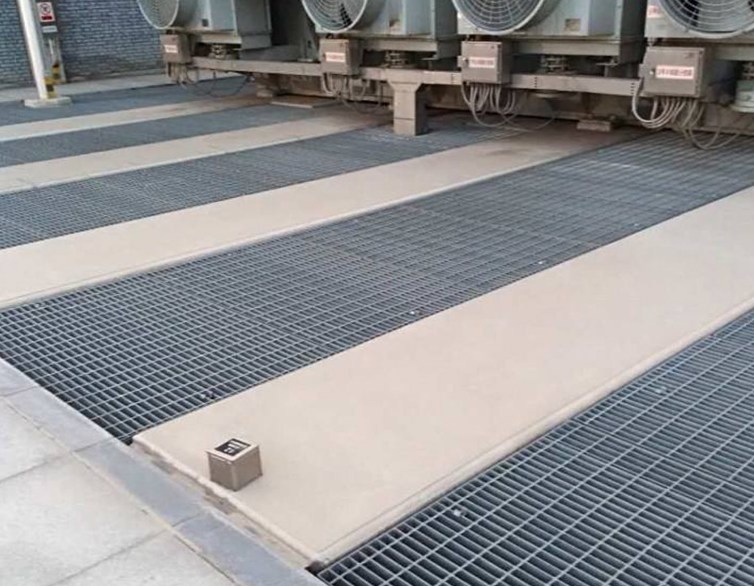

Platform steel grating has a wide range of applications. It can be used for various platforms in general factories, workshops, mining, ports, and warehouses. It is beautiful and easy to install. It is a new type of building product for upgrading.

Kick plates (edge plates) and patterned plate guards can be welded around the perimeter, and accessories such as connectors can be installed.

Flat steel of different specifications can be used for edging, or angle steel, channel steel, square tube, etc. can be used for edging; handles and hinges can also be installed on steel gratings that need to be moved or opened frequently.

Features:

1. Kick plates (edge plates) and patterned plate guards can be welded around the perimeter, and accessories such as connectors can be installed.

2. Use flat steel with different specifications from the load-bearing flat steel for edging, or use angle steel, channel steel, square tube, etc. for edging.

3. Handles and hinges can be installed on platform steel gratings that need to be moved or opened frequently.

4. The edging welding standard for platform steel gratings is: one weld for every five series 1; one weld for every four series 2; one weld for every three series 3. The weld is a single-sided fillet weld of not less than 3mm, and the weld length is 20mm.

Specifications:

1. Steel gratings with a flat steel spacing of 30mm are widely used in the industrial field. Among the series of commonly used steel gratings, they have strong resistance to surface impact.

2. Steel gratings with a flat steel spacing of 40mm are economical and lightweight. They are ideal choices for occasions with small spans.

3. The steel grating with a flat steel spacing of 60mm and a crossbar spacing of 50mm is a variety developed specifically for mining applications. It solves the problem of mineral splashing on the plate surface and is often specified for the plate surface of processing plants, transfer stations, and crushing systems in the mining industry. Steel grating materials:

1. Both flat steel and crossbars are made of Q235 of GB/T700. Other materials can also be used according to the agreement between the supply and demand parties.

2. Flat steel is made of hot-rolled flat steel or hot-rolled or cold-rolled steel strip after longitudinal shearing.

3. The allowable deviation of flat steel size meets the requirements of Table 1 YB/T4001.1-2007.

4. Toothed flat steel is made of hot-rolled flat steel or hot-rolled or cold-rolled steel strip after longitudinal shearing and punching. The tooth size cannot be less than 5 teeth per 100mm.

5. The cross-sectional dimensions and cross-sectional inertia moment of I-shaped flat steel.

Surface treatment:

It is divided into: hot-dip galvanizing, cold-dip galvanizing (electro-galvanizing), spray painting and black flakes (untreated); hot-dip galvanizing is commonly used, and the service life of the surface after rust and corrosion prevention is as long as 40-50 years.
